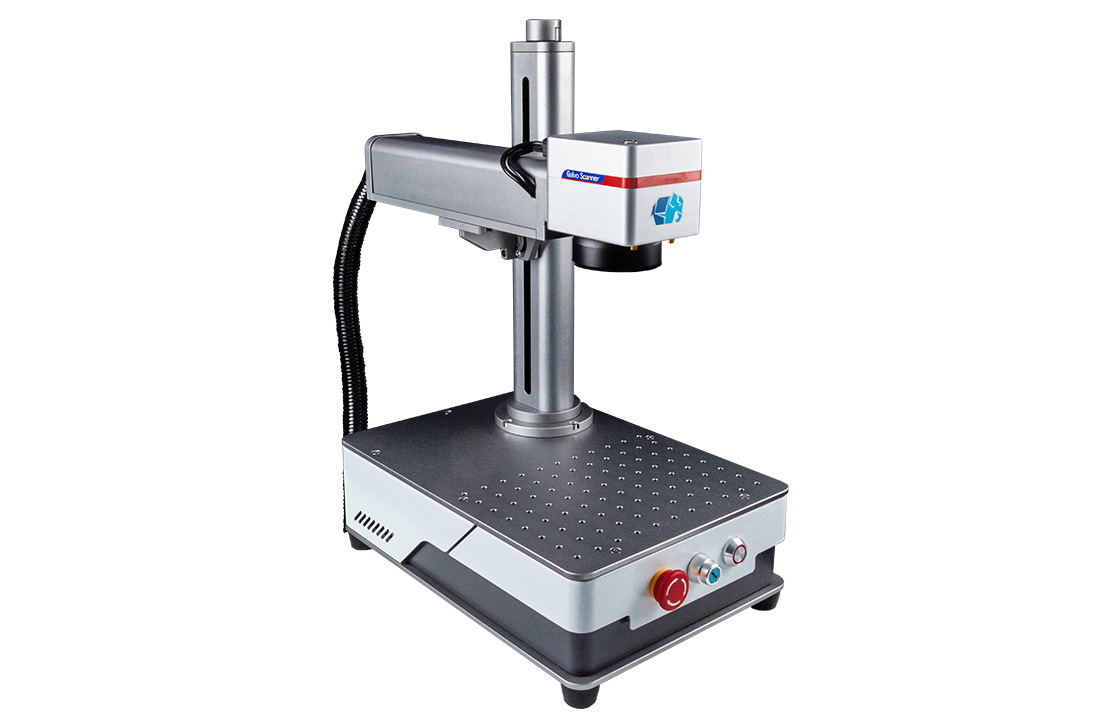

New ODMTECH E Series

Compact Design High Performance

  • Excellent results on any types of metal and plastic surfaces
  • Cutting, engraving, marking, deep engraving
  • Maintenance-free long working life
  • Creating Serial Number, Serial Date, Serial Barcode and Serial QR code
  • 70x70, 110x110, 150x150, 175x175, 220x220, 300x300mm range of application

TIME AND ENERGY DO MANY WORKS WITH ONE MACHINE

Marking

High speed marking on surfaces up to 300mm × 300mm wideness

Engraving

Engraving with a accuracy of 0.01mm on all metal surfaces without aging the CNC nozzle

Scraping

Deep engraving on metal surfaces in a short time with a powerful and continuous laser beam


Create photos, paintings and patterns on all metal surfaces.

MODULAR COMPONENTS

Adaptive Body Components

Application unit of ODMTECH Fiber Laser S Series consists of modular body components. Easily integrate the application unit, which offers flexible use, to the most accurate point of your production line with different combinations.

Accessories That Make Your Job Easier

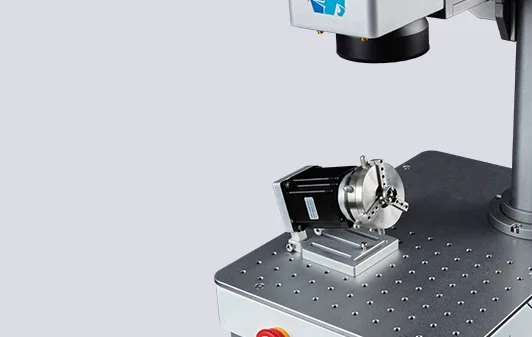

Don't be limited to flat surfaces. Mark with millimeter precision on cylindrical objects with rotary dividers compatible with ODMTECH Fiber Laser Marking Systems. 2 different rotary divider options as industrial type and jeweler type.

Eyes That See Your Business

Effortlessly switch between 6 different optical lenses compatible with the ODMTECH Fiber Laser Scan Head without the need for additional mounting brackets. The most suitable lens options for your needs up to 150 mm for high resolution metal engraving and cutting, and up to 300 mm for marking on large surfaces.

CARRY ANYWHERE WITH CONFIDENCE

Professional Handling Solution Resistant To Harsh Conditions

Professional carrying case specially designed for ODMTECH S Series Fiber Laser Marking System. It offers a complete and safe transportation solution with separate compartments for 2-piece split-type hull, accessories area, robust structure, and different base options suitable for land and sea transportation.

Industrial Level Ruggedness

  • Impact-resistant silicone surface coating
  • Solid metal frame that does not stretch
  • Metal carrying handles
  • Metal top cover with locking mechanism

PRODUCT SIZES


PACKAGE CONTENT

TECHNICIAL SPECIFICATIONS

Model E Series
Laser Power 20-30 Watt
Wavelength 1064
Marking Area Standard : 110 mm*110 mm
Optional : 70*70mm- 150*150mm - 175*175mm -220*220mm -300*300 mm
Laser Repetition Frequency 30.000KHz - 60.000Khz
Marking Speed 1 - 8000mm/s high speed scan head
Marking Depth 0.01-1mm (values ​​vary by material)
Repetition Sensibility 0.001mm
Min. Line Width 0.017mm
Min. Character Size 0.2mm
Cooling 3 fan assisted air cooling / Aluminum body
Preview Method Red laser pointer preview
Easy focus system 2 Point Laser Pointer
Control Software EzCad2 ODMTECH Edition
Supported Formats PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF, CAD, CDR, DWG
Laser Control Mainboard Beijing JCZ LMCV4-FIBER-M
Operating voltage AC220V/50Hz
Supported operating systems Windows XP, 7, 8, 10 (32-64bit)
Applicable materials All metal types, plastic and chemical derivatives
Standard Package Content PLUG-PLAY ODMTECH E Series fiber laser marking machine, Usb Memory Including Software and Training Videos Usb data cable, Fiber laser control software, Water-dust resistant power cable, Foot pedal, Optical filter protection goggles, 100 aluminum test cards, Allen key set, Industrial Level Cargo Box
Packaging Industrial Hard Case (390x740x690mm- 40kg gross)
Optional Equipments Jeweler or Industrial Type Divider

LASER PREFERENCE AND AFTER SALES

PROFESSIONAL SERVICES

WARRANTY
WARRANTY

All components of ODMTECH Fiber Laser Systems are under warranty for 2 years against fabrication defects.

TECHNICAL SUPPORT
TECHNICAL SUPPORT

Remote and on-site access to your technical support needs for ODMTECH Fiber Laser Systems designed for continuous production.

EDUCATION
EDUCATION

Unlimited access to on-site training and application videos suitable for your sectoral needs in order to get maximum efficiency from ODMTECH Fiber Laser Systems.
